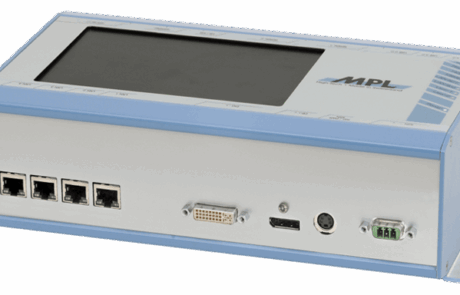

Panel PC compact 8 inchs

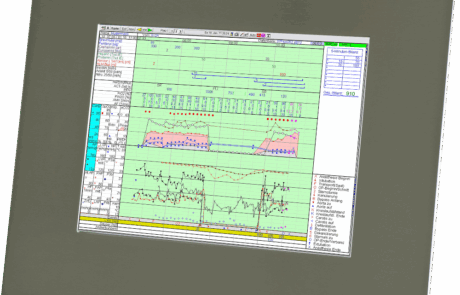

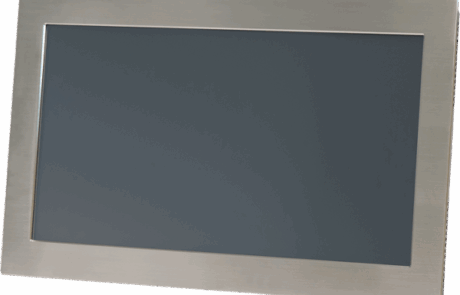

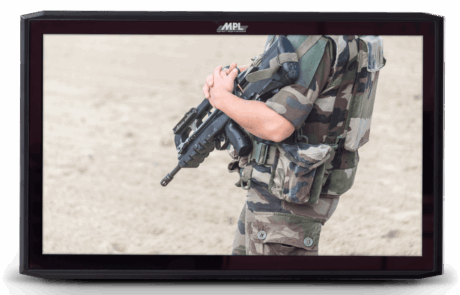

The 8-inch panel PC is fanless system. Whether it is a single-core Intel Celeron processor or a quad-core i7 core. The solution is easily customizable and expandable to meet virtually any customer needs and requirements. See others Panels PC (15 inches, 18 inches, 21 inches and TRICOR)

CPU Boards / Motherboards
CPU PIP30 Family and PIP40 Family up to Intel i7 Quad Core
Memory Up to 16GB possible (depending on selected embedded CPU board)
Storage Any SATA / mSATA drive can be used
I/Os According the selected embedded CPU board
Expansion mPCIe, XMC, PMC, PCI, PCI-104 (according selected embedded CPU board)
Display Size 8″ TFT LCD with white LED backlight
Active Display Size 174mm horizontal / 104.4mm vertical
Aspect Ratio 16:9
Resolution WVGA 800 x 480
Color Depth 16.7M
Brightness 650 cd/m2
Contrast Ratio 800:1
Viewing Angle horizontal 160° / vertical 160°
Backlight lifetime 10’000 hrs @ 25°C
Touch (optional)
Type Resistive Touch-screen (8-wire) / alternative capacitive
Input can be done by fingers or with a pen
Surface Hard coating, anti-glare treatment
Housing Characteristics
Housing Aluminum enclosure, internally chromated, externally powder coated
Mounting Options DIN-Rail or flange mounting
Protection Class IP65/NEMA4 compliant front bezel.
Power Supply 12VDC input, optional: 9-36V / 18-48V / 63-110V DC input
Power Consumption Display & Inverter typ. 2W please add CPU board power consumption.
Operating Temperature -30°C up to +85°C (-22°F to +185°F)
Storage Temperature -40°C up to +90°C (-40°F to +194°F)
Relative Humidity 10% to 90% non condensing
Standard Compliance
Designed to meet or even exceed the most common standard Particular references are:
EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E
Shock & Vibration EN 60068
Environmental & Safety EN 50155, MIL-STD-810-F, EN 60601, EN 60950
Approval List CE, IEC 60945, IACS E10
