Compact embedded computers

Fanless computers | APLUS SA | Defense & Security

Our built-in computers are designed to be robust, fanless and cable-free. Their ability to operate in difficult environmental conditions is tested rigorously. They are extremely reliable and suitable for a wide range of industrial applications. Our fanless IT product line offers a reliable and robust comprehensive solution for critical industrial environments.

Also discover our rugged industrial computer solution or our embedded computer solution or our range of rugged PCs.

Ordinateurs embarqués compacts

Compact embedded computer

Compact embedded computers

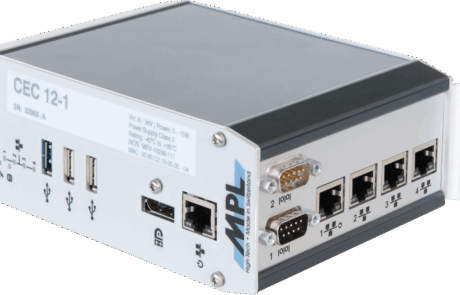

	CEC10 Family
	CEC11	CEC12	CEC14
Processor	Intel Atom E3815	Intel Atom E3825	Intel Atom E3845
CPU-Speed	1.46 GHz	1.33 GHz	1.91 GHz
Chipset	SoC
Memory	up to 8GB DDR3L ECC
Temperature Range	-20°C up to +60°C
Extended Temp.	-40°C up to +85°C
Size	62 x 162 x 118 mm ( W x H x D)
Function Overview
Graphics	DP, Intel HD opt. eDP / VGA
Gbit Ethernet	5
USB 2.0	3 1x USB 3.0
PS/2	n/a
Serial	1 port RS232 opt. 1 RS232 or RS422/485
Storage IF	mSATA, eMMC opt. 2.5 HD/SSD
Input Voltage	8 – 36 VDC (reverse polarity and load dump protection)
Power Consumption	8 – 18W
Expansions	miniPCIe opt. PCIe/104
Special

TRICOR Panel PCs

Key features
– 10″ to 24″ panel sizes, wide screen solutions – Military grade HE30 aluminum housings – IP54 protected – Touch Option available – Wide range of CPU boards (Atom up to i7 9th Gen & Xeon) – Interfaces on MIL-DTL-38999 III – Optional Function Keys

18.5 inches Panel PCs

MPL 18.5 inchs Panel PCs

Key features
– Space saving, integrated, All-in-One solution – Fanless design – VESA / Wall / Panel mounting – Wide choice of processor (Intel Atom to i7) – Full High Definition display – Operating at -20°C to +70°C – Highly configurable and customizable to customers specifications

21 inches Panel PCs

Key features
– Space saving, integrated, All-in-One solution – Silent, fanless design – IP65 protected (front) – Stainless steel front panel – Panel or VESA mounting – Wide choice of processor (Intel Atom to i7) – Optionally easy operation, navigation over touch screen – Choice of various operating systems

8 inches Panel PCs

Key features
– Space saving, integrated, All-in-One solution – Silent, fanless design – Wide range of CPU boards – Optionally easy operation, navigation over touch screen – Choice of various operating systems – Operating temperature -30°C up to 85°C

15 inches Panel PCs

Key features
– Space saving, integrated, All-in-One solution – Fanless design – Up to IP65 protected (front) – Stainless steel front panel – Wide choice of processor (Intel Atom to i7) – Optionally easy operation, navigation over touch screen – Choice of various operating systems
